Main Window.

To start G3D, type either `g3d' or `g3d file' where `file' uses the formatting specified in the distribution file `FILE_FMT.doc' (see also Appendix I). Once initialized the main draw window appears as in Figure 1.

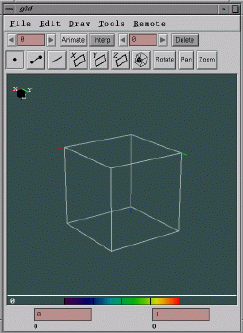

Figure1: Initial Main Draw Window

Notice that menu items run along the top of the window and may be `torn-off' for easy selection of procedures (such as Redraw) and sub-menu items. Simply pull-down the menu item and select the dotted line. You may then place this widget in a convenient location.

• Pull-down Menu Items:
• 3-D Select and View Control Icons:
• Time Frame Control Widgets:
• Main Draw Area:
• Color Bar Information and Application:
